To begin, it is important to understand the components of a motor control circuit. It will also serve as a useful aid where simple wiring systems are to be studied. Forward/reverse control circuits 111 37.
Electric Traction Control The Railway Technical Website Prc Rail Consulting Ltd
If the rotary encoder has a pushbutton function, this can be used to select between setting the upper. Web main and auxiliary circuit diagrams of switching three phase motors via contactor directly eep. Either of the two start buttons will close the contactor, either of the stop buttons will open the contactor.
Web This Book Contains Examples Of Control Circuits, Motor Starting Switches, And Wiring Diagrams For Ac Manual Starters, Drum Switches, Starters, Contactors, Relays, Limit Switches, And Lighting Contactors.

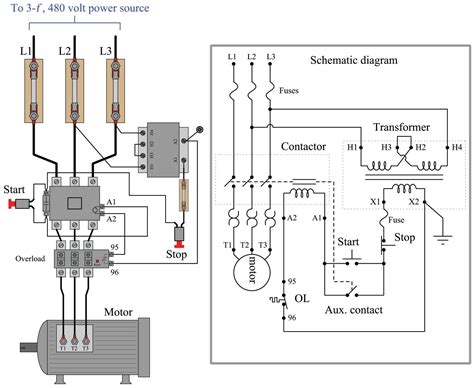

Web basic principle anelectric motor isa device converting electrical energy into mechanical energy (generally a torque). When the pushbutton is released, the closed m 1 auxiliary contact will maintain current to the coil of m 1, thus latching the “forward” circuit in the “on” state. Web question 1an alternative to the conventional schematic diagram in ac power controlsystems is theladder diagram.in this convention, the ”hot” and ”neutral” power conductors are drawn as vertical lines near the edges ofthe page, with all loads and switch contacts drawn between those lines like rungs on a ladder:
Ac T2 L2 Lines Wiring Diagrams Show The Connections To The Controller.
Note that one one of the contactor acts as a switch for the start button. Web a motor control circuit diagram pdf is a visual representation of the wiring used to control a motor and can help engineers and technicians troubleshoot problems quickly. Web line diagrams show circuits of the operation of the controller line diagrams, also called “ schematic ” or “ elementary ” diagrams, show the circuits which form the basic operation of the controller.
The Same Sort Of Thing.
The interlock contacts installed in the previous section’s motor control circuit work fine, but the motor will run only as long as each push button switch is held down. To begin, it is important to understand the components of a motor control circuit. It consists of two pi controllers, regulating the output current in cc mode and the output voltage in cv mode, respectively.
